SWT-3.0 Series
- Products
- FORBLUE sunsep™
- Table of Products
- SWT-3.0 Series
Operating Conditions
| Standard gas flow rate | ～2L/min(ANR) (ANR = air flow at reference conditions of 20℃, atmospheric pressure.) |
|---|---|
| Applicable Temperature Range (Gas and ambient temperature) |
-15℃（without freezing）～80℃ |
| Inlet pressure | -0.03 ～ 0.5 MPa(Gauge) at 25℃（with dry hollow fiber membranes） |
| Applicable gases | Air, breath, N2, CO2, O2, and more (please contact us for details) |
Outer dimensions
Unit : mm
| Model | Dimensions mm(inch) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | ||||||
| BF | P6 | ||||||
| SWT-3.0-015 | 200 | 150 | |||||
| SWT-3.0-030 | 350 | 300 | |||||
| SWT-3.0-060 | 650 | 600 | |||||
Different connector bores are also available. Please contact us for more information.
Fittings
| Outer diameter of hollow fiber φ[mm](inch) |
Fitting | Code | Outer diameter of fitting φ[mm](inch) |
Image | Effective length [mm](inch) ( Length B in the drawing above ) |
|---|---|---|---|---|---|
| 3.0 | Male Luer Lock | BF | 3.20 |  |
Standard lengths: 150(5.9), 300(11.8), 600(23.6) Other lengths available on request. Please feel free to contact us. |
| Straight | P6 | 6.00 |  |
||
Fitting material : Polypropylene (PP)
Pressure drop

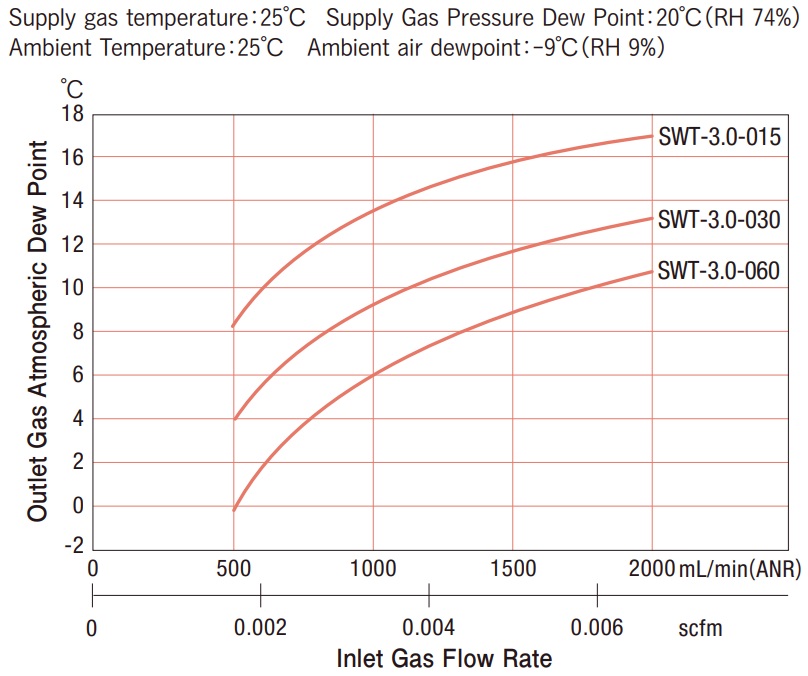

Dehumidification performance
Related Products
- sunsep™ inquiry form
Please contact us to discuss OEM products and custom orders, etc.
