SWT-1.3 Series
- Products
- FORBLUE sunsep™
- Table of Products
- SWT-1.3 Series
Operating Conditions
| Standard gas flow rate | ～300mL/min(ANR) (ANR = air flow at reference conditions of 20℃, atmospheric pressure.) |
|---|---|
| Applicable Temperature Range (Gas and ambient temperature) |
-15℃（without freezing）～80℃ |
| Inlet pressure | -0.03 ～ 0.5 MPa(Gauge) at 25℃（with dry hollow fiber membranes） |
| Applicable gases | Air, breath, N2, CO2, O2, and more (please contact us for details) |
Outer dimensions
Unit : mm
| Model | Dimensions mm( inch ) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | ||||||
| MM | FF | FM | SS | MB | P4 | ||
| SWT-1.3-015 | 194 | 184 | 185 | 200 | 150 | ||
| SWT-1.3-030 | 344 | 334 | 335 | 350 | 300 | ||
| SWT-1.3-060 | 644 | 634 | 635 | 650 | 600 | ||
Different connector bores are also available. Please contact us for more information.
Fittings
| Outer diameter of hollow fiber φ[mm](inch) |
Fitting | Code | Outer diameter of fitting φ[mm](inch) |
Image | Effective length [mm](inch) ( Length B in the drawing above ) |
|---|---|---|---|---|---|
| 1.3 | Male Luer Lock | MM | - |  |
Standard lengths: 150(5.9), 300(11.8), 600(23.6) Other lengths available on request. Please feel free to contact us. |
| Female Luer Lock | FF | - |  |
||
| Female-male Luer Lock | FM | - | One side male, the other side female | ||
| Barb | MB | 2.55 |
 |
||
| Straight | P4 | 4.00 |  |
||
| Stainless steel tube | SS | 1.27 |  |
Fitting material : Polypropylene (PP)
Pressure drop

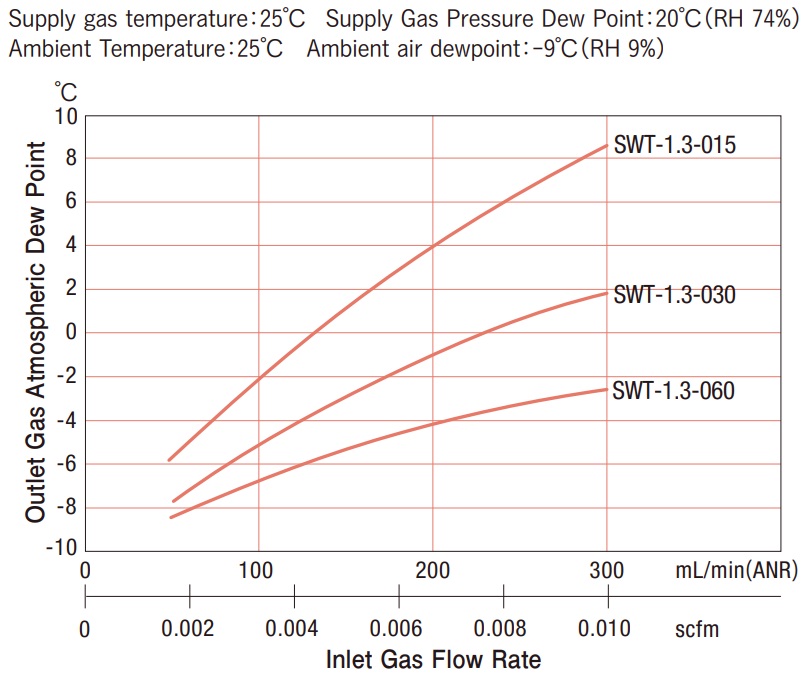

Dehumidification performance
